HST Vynil Patio Doors

HST Lift-Slide Patio Doors: HST Vynil Patio Doors

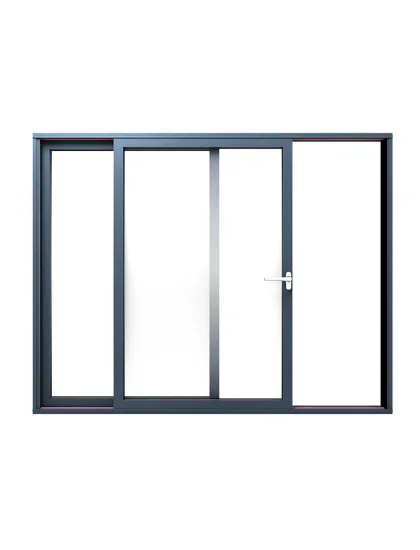

HST vinyl patio doors

Options available:

  • HST-motion NEW!

  • HST in series: FNN-70, FNN-82 and FNN-82 AL with an aluminum cladding

They operate on the basis of an innovative lift-and-slide opening system, allowing for the implementation of large-sized glazing.Convenient opening and closing and the ability to flush the doorstep with the floor make it an extremely prestigious and elegant solution for those looking for lots of natural light. The door works based on an innovative lift-and-slide opening system, which gently lifts the sash moving on special rollers. This makes sliding the door effortless.

Even better patio doors!
HST-motion from Fenster

  • Perfect lighting
    Large glazings in narrow vinyl sash profiles provide a striking appearance and plenty of natural light
  • Smooth operation of the moving sash
    Using a small amount of force allows the sash to move freely and the door to be operated easily
  • Thermal comfort of the floor adjacent to the door
    A warm vinyl threshold with high thermal insulation additionally eliminates heat loss
  • Safety and aesthetics
    The hook espagnolette is free of protruding pins on the frame, which ensures collision-free communication as well as an elegant appearance
  • Barrier-free passage
    the possibility of using a levelling overlay up to a 0 mm threshold

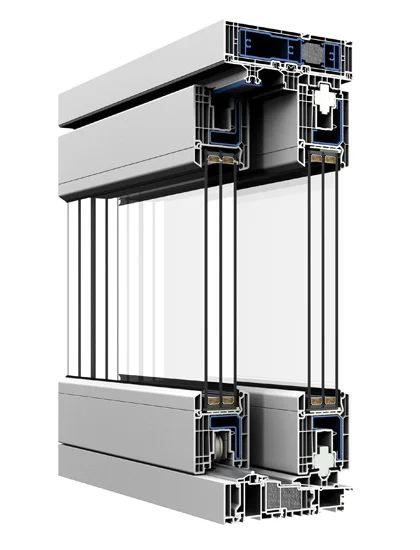

Uw*

0,83 W/(m2k)

Glazing package

4/18/4/18/4

Threshold

62 mm made of vinyl

Installation depth

Sash: 82 mm; Frame: 194 mm

Max. door height

2,7 m for white color and 2,5 m for other colors

Max. door width

6,5 m

Max. sash size

6,5 m2

V-perfect welding

Available for double-sided veneer

Colors

Basic Colors


Golden oak 2178001
Golden oak 2178001
Nut 2178007
Nut 2178007
Anthracite 701605
Anthracite 701605
Winchester 49240
Winchester 49240
Swamp oak 2052089
Swamp oak 2052089
Dark grey silk 4367003
Dark grey silk 4367003
Woodec oak F4703001
Woodec oak F4703001

Special Colors


Red-brown 308105
Red-brown 308105
Mahogany 2065021
Mahogany 2065021
Silver grey 715505
Silver grey 715505
Brown 887505
Brown 887505
Basalt grey 701205
Basalt grey 701205
Quartz grey 703905
Quartz grey 703905
White 9152.05
White 9152.05
Creamy white 137905
Creamy white 137905
Sheffield Oak F4563081
Sheffield Oak F4563081
Green 600505
Green 600505
Dark green 612505
Dark green 612505
Light grey 725105
Light grey 725105
Agate grey 703805
Agate grey 703805
Navy blue 515005
Navy blue 515005
Mountain pine 3069041
Mountain pine 3069041
Oregon III 2115008
Oregon III 2115008
Platinum crown 1293001
Platinum crown 1293001
Smooth silver grey 715505083
Smooth silver grey 715505083
Smooth basalt grey 701205083
Smooth basalt grey 701205083
Ruby 300305
Ruby 300305
Light oak 3118076
Light oak 3118076
Dark grey ALUX DB703 F4361014
Dark grey ALUX DB703 F4361014
Desert oak 0057004
Desert oak 0057004
Black 116700
Black 116700
Black mat 02.12.01.000004 – 809700
Black mat 02.12.01.000004 – 809700
Amaranth oak 0078008
Amaranth oak 0078008
Monument oak 0057006
Monument oak 0057006
Mountain oak 0057005
Mountain oak 0057005
Anthracite grey ulti –matt 02.20.71.000001 – 504700
Anthracite grey ulti –matt 02.20.71.000001 – 504700

The colors presented are just a visualization and may be different from the actual colors.
