Aluminum Insert Panel Doors
Go back to Panel Overlays Doors

Panel Overlays Doors: Aluminum Insert Panel Doors

Find the perfect door for your home wide range of aluminum door cover models.




  • When choosing a door model, check how the design is presented in maximum and minimum dimensions

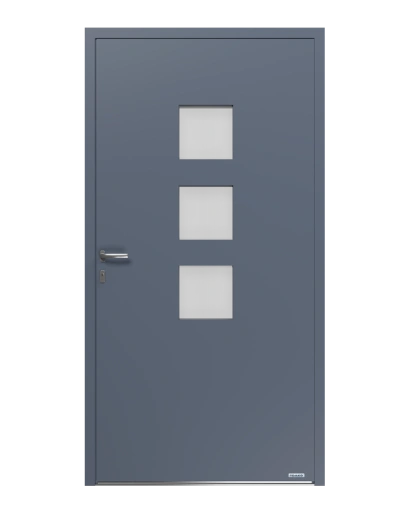

Group I

Show all variants
  • Show all variants
  • FN 1
  • FN 2
  • FN 3
  • FN 4
  • FN 5
  • FN 6
  • FN 7
  • FN 8
  • FN 9
  • FN 10
  • FN 11
  • FN 12

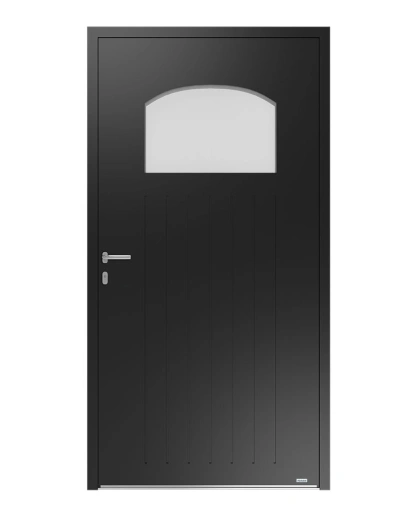

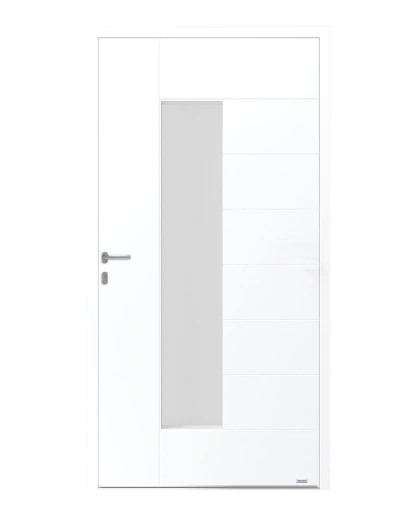

Group II

Show all variants
  • Show all variants
  • FN 13
  • FN 14
  • FN 15
  • FN 16
  • FN 17
  • FN 18
  • FN 19
  • FN 20
  • FN 21
  • FN 22
  • FN 23
  • FN 24

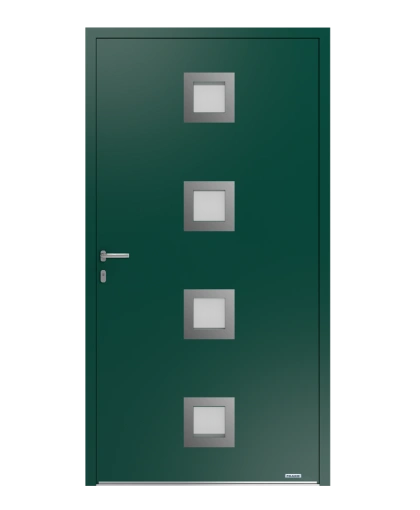

Group III

Show all variants
  • Show all variants
  • FN 25
  • FN 26
  • FN 27
  • FN 28
  • FN 29
  • FN 30

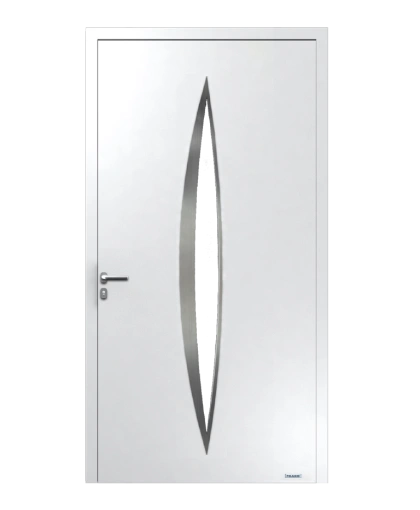

Group IV

Show all variants
  • Show all variants
  • FN 31
  • FN 32
  • FN 33
  • FN 34
  • FN 35
  • FN 36
  • FN 37
  • FN 38
  • FN 39
  • FN 40
  • FN 41
  • FN 42

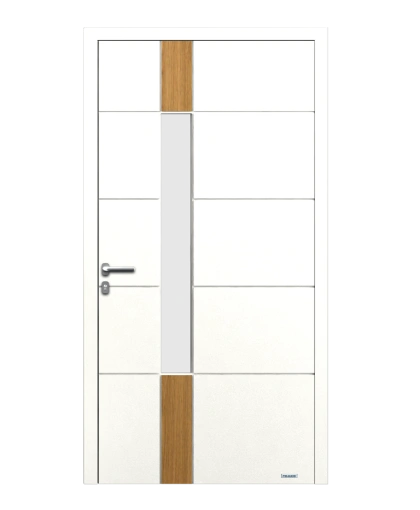

Group V

Show all variants
  • Show all variants
  • FN 43
  • FN 44
  • FN 45
  • FN 46
  • FN 47
  • FN 48

Group VI

Show all variants
  • Show all variants
  • FN 49
  • FN 50
  • FN 51
  • FN 52
  • FN 53
  • FN 54

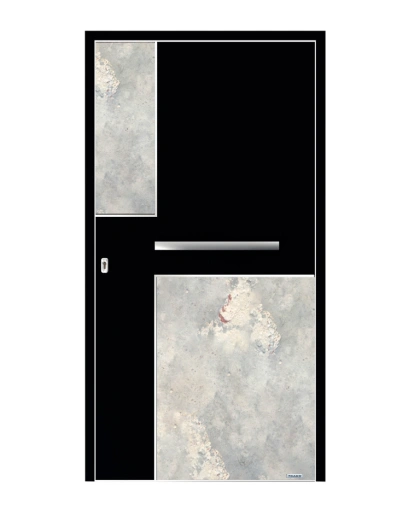

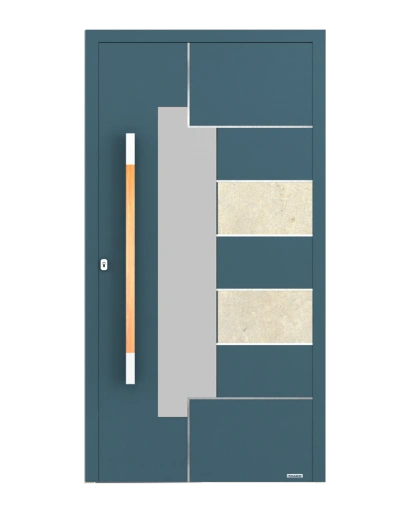

Group VII

Show all variants
  • Show all variants
  • FN 55
  • FN 56
  • FN 57
  • FN 58
  • FN 59
  • FN 60

Construction

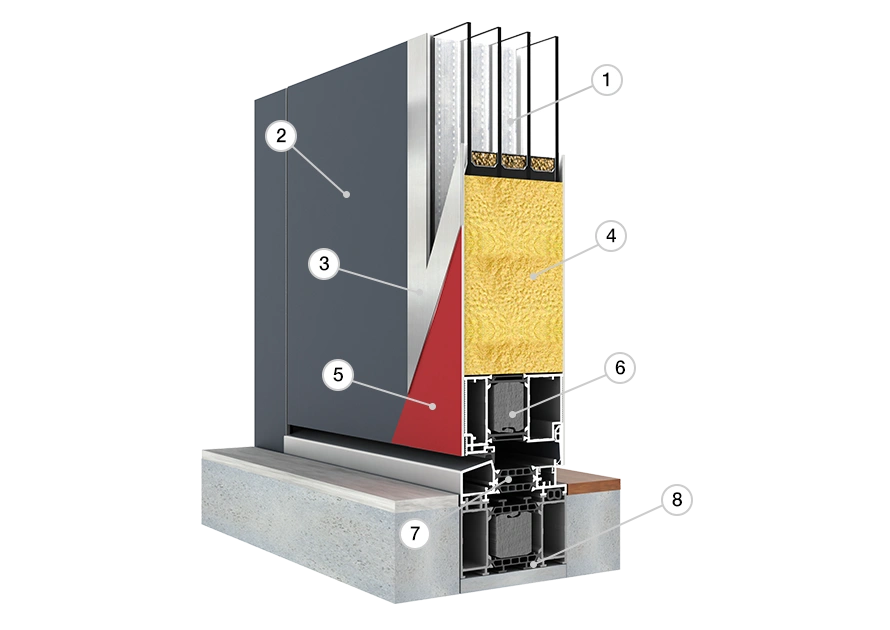

DA-90N door construction

DA-90N door construction

1 - 4-shaft package, safe of both sides
2 - Aluminum panel
3 - Inox application
4 - Thermal insulation
5 - Decoration
6 - Profile with thermal insulation insert
7 - Aluminum doorstep 28 mm
8 - Aluminum widening for a low doorstep in black. Necessary to sink in the floor to a depth of 38 mm (increases the height of the ordered door by 30 mm)

  • system with thermal parameter Ud=0,66 W/m2K1
  • 3-chamber profile with a depth of 90 mm
  • aluminum doorstep with 28 mm height thermal switch (8 mm doorstep must be merged into the floor)2
  • 90 mm thick panel filled with polyurethane foam
  • 3-chamber double-sided safety glass 33.1/20/4/18/4/20/33.1 Ug=0,5 W/m2K
  • resistance to wind load Pa2400
  • watertight 7A
  • air permeability class 4

1 the Ud values were calculated in accordance with PN-EN ISO 10077-1, PN-EN ISO 10077-2, and PN-EN ISO 12631. The Ud value is calculated for doors with dimensions of 1300 mm x 2350 mm for models from 01.01 to 01.12.

2 For doors to dwellings and condos, in the collective housing building, the height of doorsteps may not exceed 20 mm, following the Journal of laws of the Republic of Poland on the publication of the single text of the regulation of the minister of infrastructure on the technical conditions to which buildings and their location should correspond.

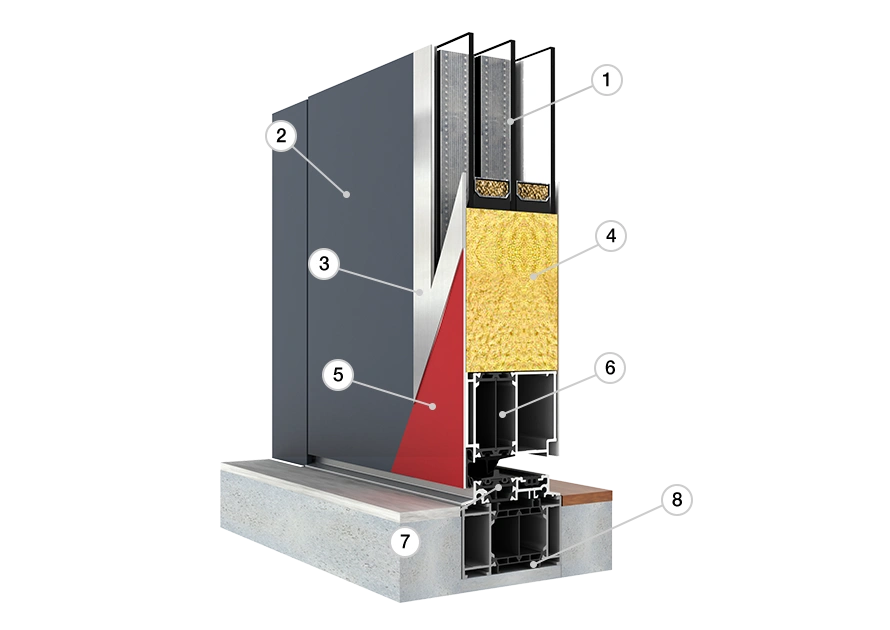

DA-77N door construction

DA-77N door construction

1 - 3-shaft package, safe on both sides
2 - Aluminum panel
3 - Inox application
4 - Thermal insulation
5 - Decoration
6 - 4-chamber profile
7 - Aluminum doorstep 20 mm
8 - Aluminum widening for a low doorstep in black. Necessary to sink in the floor to a depth of 26 mm (increases the height of the ordered door by 26 mm)

  • a system with thermal parameter Ud=0,8 W/m2K1
  • 4-chamber profile with a depth of 77 mm
  • aluminum doorstep with 20 mm high thermal plate
  • 77 mm thick panel filled with polyurethane foam
  • 2-chamber double-sided safety glass 33.1/24/6/24/33.1 Ug=0,5 W/m2K
  • resistance to wind load C2/B2
  • watertight 5A
  • air permeability class 2

1 the Ud values were calculated in accordance with PN-EN ISO 10077-1, PN-EN ISO 10077-2, and PN-EN ISO 12631. The Ud value is calculated for doors with dimensions of 1300 mm x 2350 mm for models from 01.01 to 01.12.

2 For doors to dwellings and condos, in the collective housing building, the height of doorsteps may not exceed 20 mm, following the Journal of laws of the Republic of Poland on the publication of the single text of the regulation of the minister of infrastructure on the technical conditions to which buildings and their location should correspond.

Colors

Standard decors

Golden oak 2178001
Golden oak 2178001
Nut 2178007
Nut 2178007

The colors presented are just a visualization and may be different from the actual colors.
